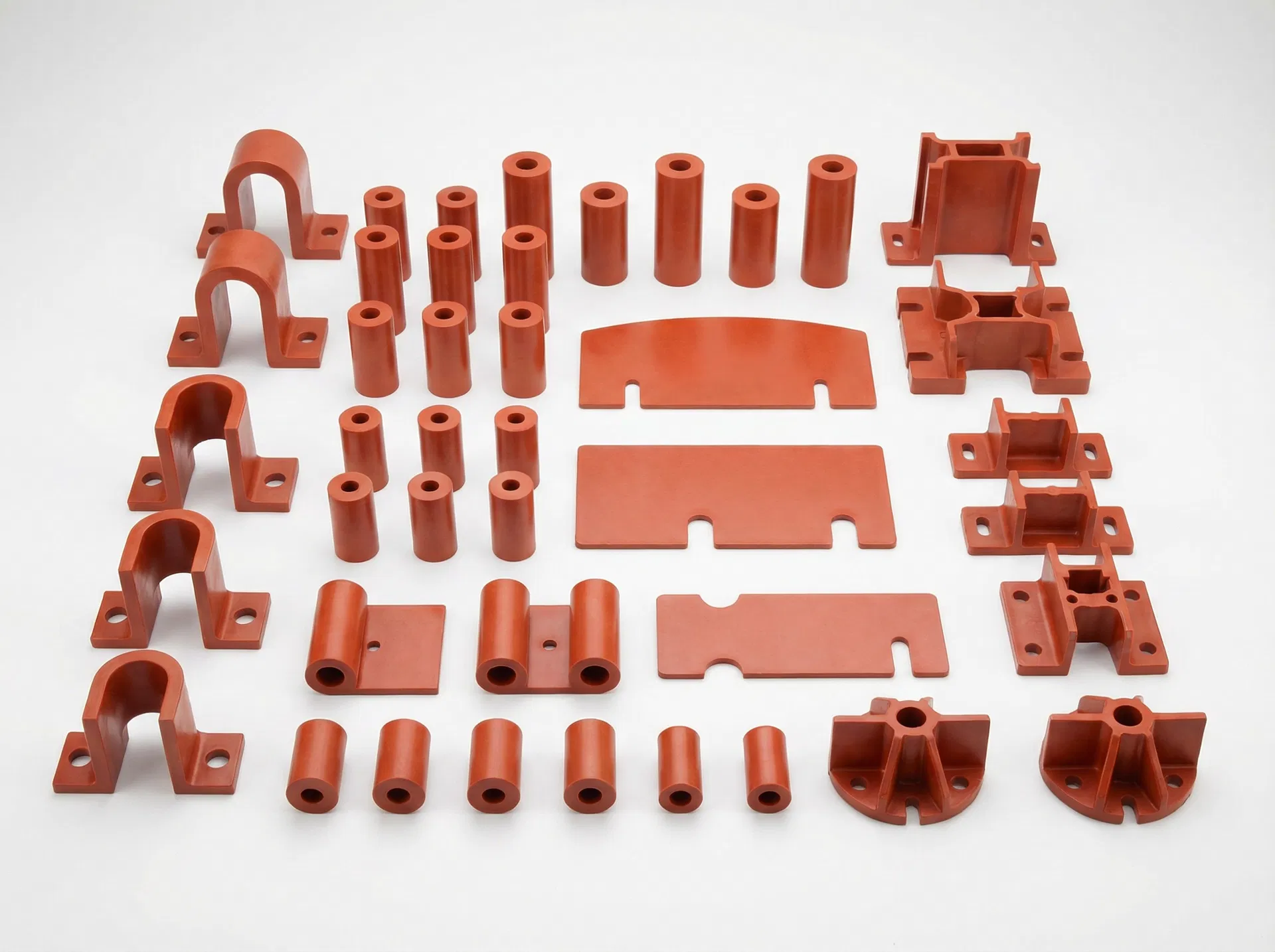

GPO-3 Custom Machined Insulation Parts
Precision-machined GPO-3 insulation components manufactured to customer drawings and specifications. Our CNC machining capabilities enable the production of complex insulation structural parts including busbar supports, insulating spacers, terminal blocks, mounting brackets, and arc barriers. Each part is fabricated from premium GPO-3 laminate to ensure consistent electrical insulation performance, mechanical strength, and dimensional accuracy across every production run.
Key Advantages
Lead Time
15-25 Days
MOQ
100 pieces
Sample
Available
Technical Specifications
| Parameter | Value |
|---|---|
| Standard | NEMA GPO-3 / UL 94 V-0 |
| Material | Glass Mat Reinforced Polyester |
| Machining Tolerance | ±0.1 mm |
| Process | CNC Milling / Drilling / Routing |
| Min Order Qty | Flexible (prototype to mass production) |
| Lead Time | 7–15 business days (standard) |
| Inspection | 100% dimensional inspection |
| Certification | Material test reports available |
Material Information
Available Sizes & Customization
We offer a wide range of standard sizes and specifications. Custom dimensions, materials, and finishes are available upon request.
Application Scenarios
Busbar insulation supports and clamps
Insulating spacers and standoffs
Terminal blocks and mounting plates
Arc barriers and phase separators
Transformer insulation components
Motor and generator insulation brackets
Switchgear structural insulation parts
Custom electrical insulation assemblies
Manufacturing Process
Material Selection
NEMA-grade GPO-3 laminate sheets sourced from certified manufacturers
CNC Programming
CAD/CAM programming for precision cutting, drilling, and milling operations
CNC Machining
Multi-axis CNC machining centers for complex insulation part geometries
Surface Finishing
Deburring, edge chamfering, and surface treatment for optimal electrical performance
Electrical Testing
Dielectric strength, insulation resistance, and arc resistance verification
Cleanroom Packaging
Dust-free packaging to maintain surface cleanliness for electrical applications
Custom Insulation Solutions
We specialize in custom-machined electrical insulation components from GPO-3, FR4, G10, and other laminate materials. Our CNC machining capabilities allow us to produce complex insulation parts to your exact specifications.
Our Capabilities
Quick Reference
| Minimum Order Quantity | 100 pieces |
| Lead Time | Standard sheets: 3-5 days | Custom machined: 10-15 days |
| Sample Availability | Samples available within 5-7 days; material samples free of charge |
| Payment Terms | T/T, L/C, Western Union |
| Trade Terms | FOB, CIF, DDP, EXW |
Packaging & Delivery
Insulation products require careful handling to prevent surface contamination and mechanical damage.
Packaging Options
- Individual wrapping with PE film protection
- Foam-lined cartons for machined parts
- Wooden crate for sheet materials
- Vacuum-sealed packaging for sensitive components
Shipping Methods
- FOB
- CIF
- DDP
- EXW
Loading Ports: Shanghai Port, Ningbo Port
Export Experience
- Exported to 50+ countries
- 15+ years of export experience
- Professional export documentation
- Experienced freight forwarder network
Quality Control
Our insulation products undergo comprehensive electrical and mechanical testing to ensure they meet NEMA and IEC standards.
Inspection Process
Material Verification
Incoming laminate sheets verified against NEMA/IEC specifications
Dimensional Inspection
CNC-machined parts measured with CMM for critical dimensions
Electrical Testing
Dielectric strength, insulation resistance, and arc resistance testing
Visual Inspection
Surface quality, edge finish, and contamination check under magnification
Documentation
Complete test reports, material certificates, and certificates of conformance
Certifications & Standards
Factory Capabilities
Factory Area
5,000 m²
Export Markets
50+ Countries
Experience
15+ Years
Annual Capacity
2,000,000 pcs
Frequently Asked Questions
Request a Quote
Interested in GPO-3 Custom Machined Insulation Parts? Fill out the form below and our sales team will respond within 24 hours with pricing, specifications, and lead time information.
